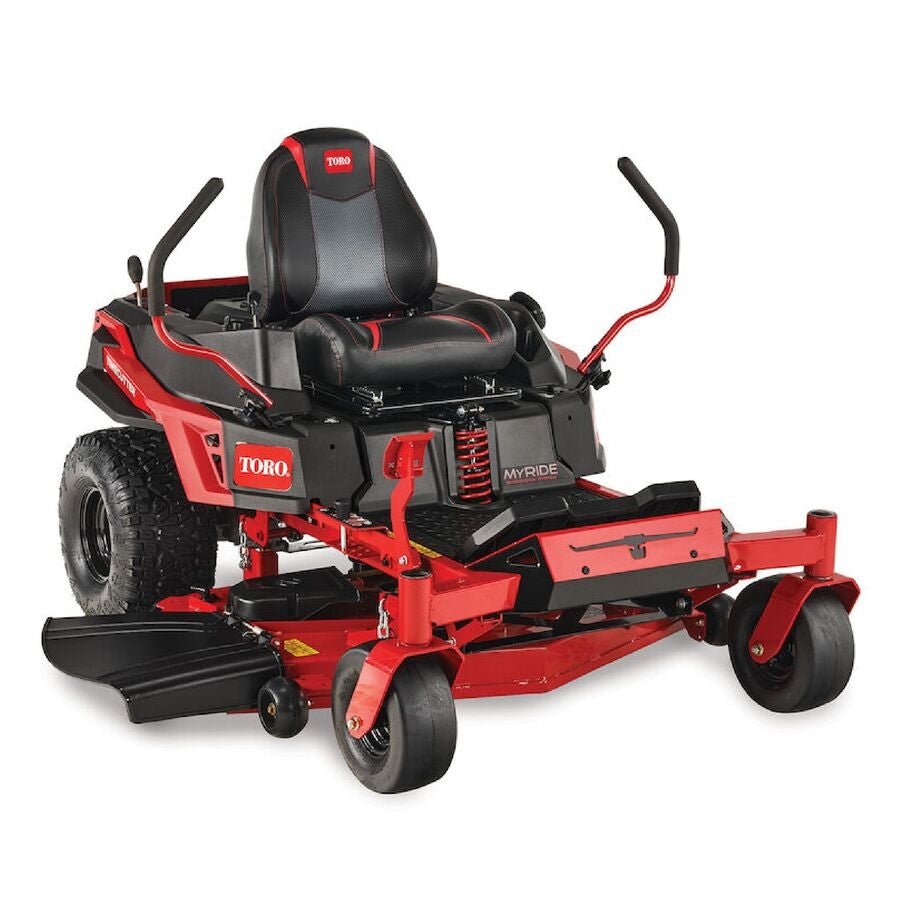

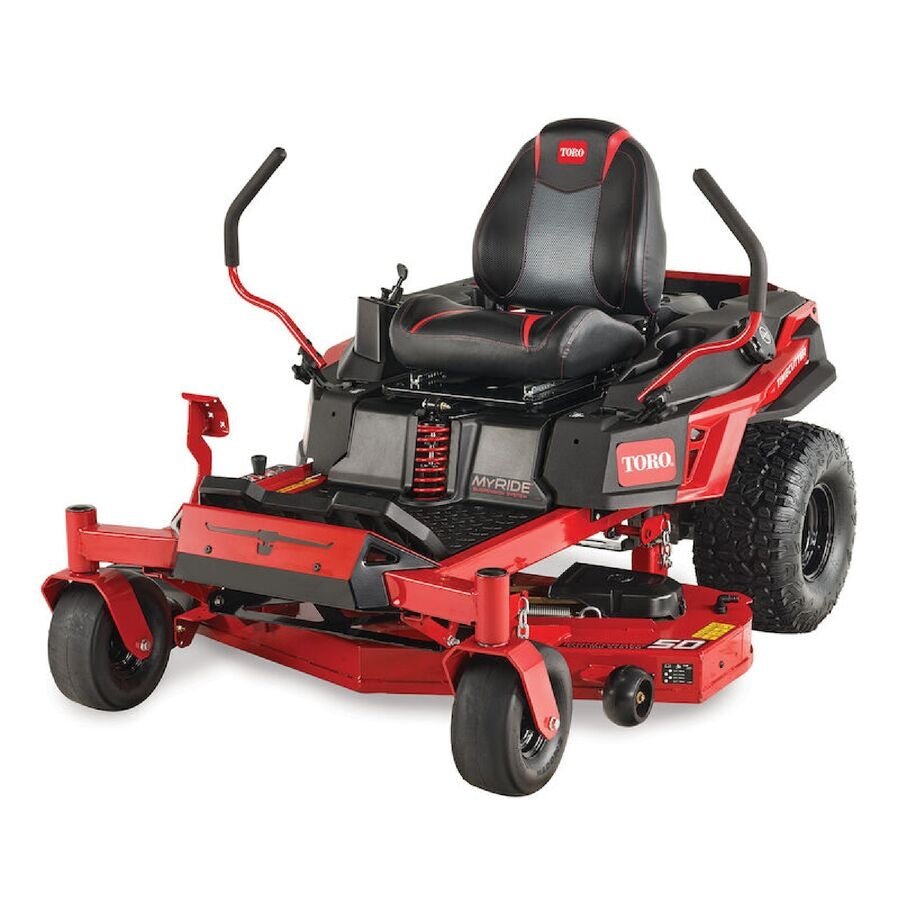

50 in. (127 cm) TimeCutter Max MyRide Zero Turn Mower

When it comes to your yard, second best just won’t cut it. That’s why the Toro TimeCutter MAX is designed to take down grass like a pro and leave you feeling like a million bucks when you’re done. With features like an unflinching heavy duty IronForged deck and fully floating MyRIDE® Suspension, you get the toughness and precision that comes with over a century of pro-level engineering and a shockingly smooth, back-saving ride and save a ridiculous amount of time cutting.

Specifications

Air Filter
Standard Kawasaki Air Cleaner

Anti Scalp Wheels
3 Standard

Armrests
Optional

Bagger Capacity
4.9 bushels

Blade Tip Speed
17,600 ft/min / 5,364 m/min

Box Dimensions
82.0 in. x 57.0 in. x 35.0 in. / 208.3 cm x 144.8 cm x 88.9 cm

CARB Compliant
Not CARB Compliant

Carrier Frame
3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel

Caster Tires
12 in. x 6 in. – 5 in. (30.5 x 12.2 cm – 12.7 cm) Pneumatic

Clutch
Electromagnetic

Comfort Platform
MyRIDE® Suspension System

Cooling System
Air Cooled

Crankshaft
1″ (25 mm) w/Steel Protector

Cup Holder
Standard

Cutter System
Steel Cutting Blade

Deck Design
10-Gauge steel IrongForged®

Deck Material
10 Gauge Steel

Deck Size
50 in / 127 cm

Discharge Chute
Side

Drive System
HYDRO

Drive Tires
20 in. x 10 in. – 8 in (51 cm x 26 cm – 20.3 cm)

Drive Type
Rear-Wheel Drive

Engine
23 hp Kawasaki FR691V 726cc

Engine Brand
Kawasaki

Engine Displacement (cc)
726 cc

Engine Horsepower
23.0 hp

Engine Power (kW)
17.2 kW

Foot Operated Height of Cut
Standard

Forward Ground/Transport Speed
Up to 7.0 mph / 11.2 kph

Forward Mowing Speed
Up to 7.0 mph / 11.2 kph

Frame
3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing

Fuel Capacity
5 gal. / 18.9 L / 20 Qt.

Fuel Type
Gasoline

Greasable Bearings
Yes

Height of Cut
1.5 – 5.0 in. / 3.8 – 12.7 cm

Hitch Bracket
Standard

Hour Meter
Optional

Hydraulic Drive
Standard

Lighting
Optional

Number of Blades
3

Product Type
TimeCutter Max MyRide

Product Use
Residential

Recommended Oil Type
10W-30

Roll-Over Protection System (ROPS)
Optional

Seat
19″ Gaming Style

Spindle Bearings
Maintenance-free

Spindle Housing
Cast-Aluminum

Start Type
Electric

Steering Controls
Twin Lever

Steering Dampeners
Standard Dampers

Terrain Type
Flat with Obstacles

Tires

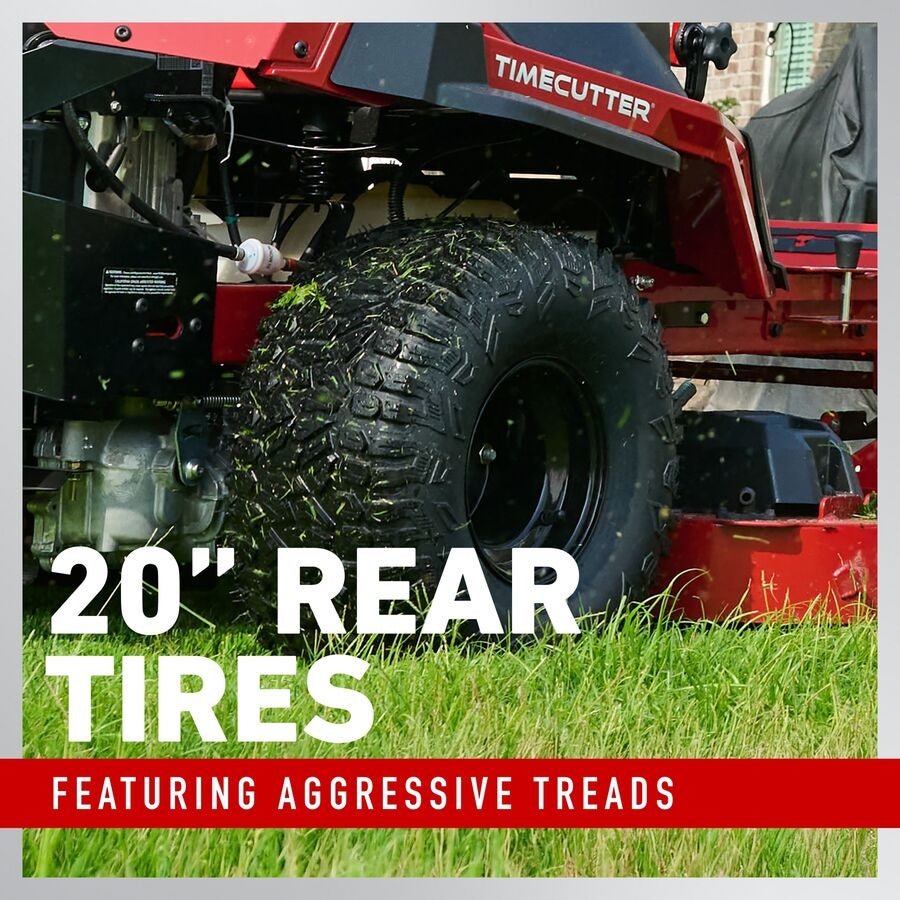

12 in. x 6 in. (30.5 cm x 15.2cm) Front, 20 in. x11 in. (55.8 cm x 27.9 cm) Rear

Tow Capacity
Combined machine, user, towed weight may not exceed 1,000 lbs.

Transmission
Dual Hydrostatic HG-EZT2200

Washout Port
Standard

Weight
684 lbs / 310.3 kg
