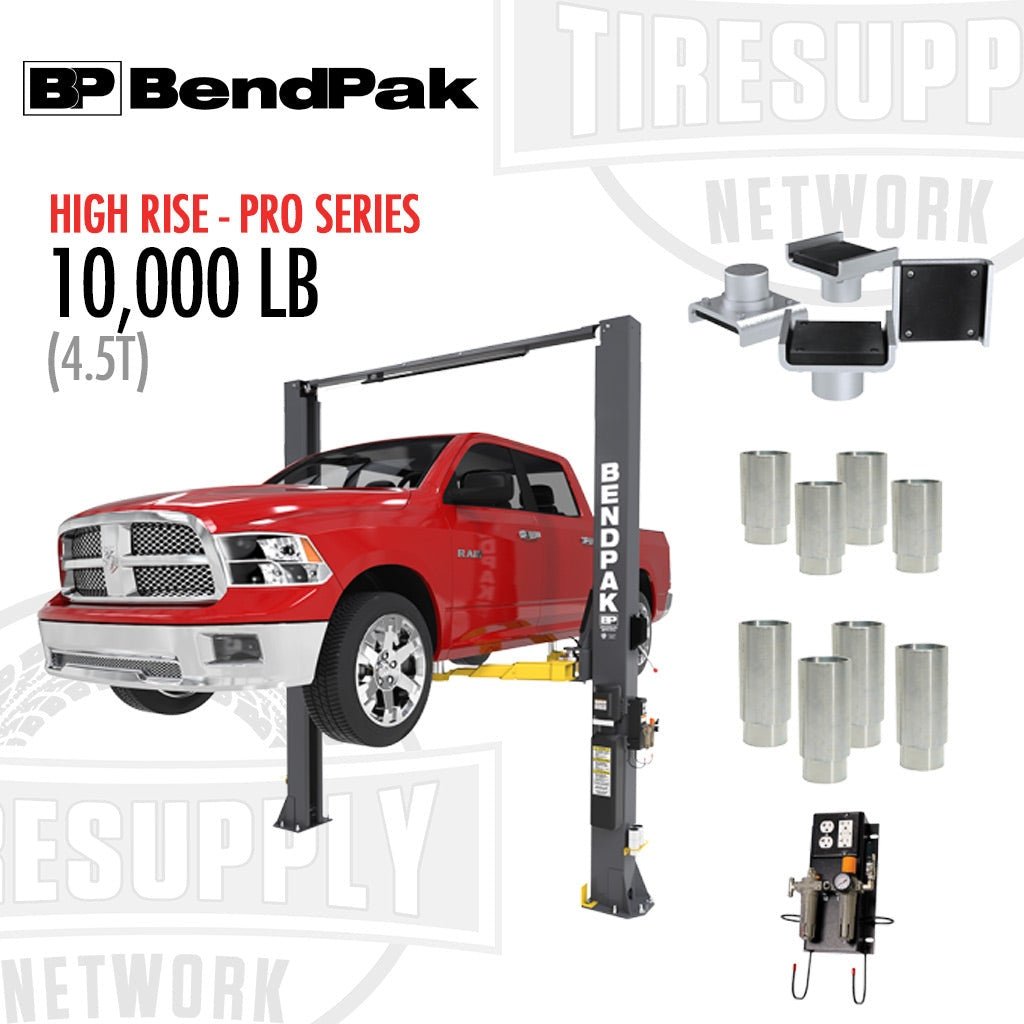

BendPak Pro-Series 10APX High-Rise Two Post Car Lift

The next generation of two-post lifts – now with an increased height! The 10AP Series is built with the future in mind, and has all the features you’ll need to service vehicles as effectively as possible. This revolutionary lift can handle Electric Vehicles effortlessly and can adapt to both symmetrical and asymmetrical configurations.
This product is protected by patent in the United States (Patent No. US11820632B2), Canada, China, and other countries where corresponding patent protection has been sought.
10APX Pro Series

Durable powder coat finish
Expandable top beam accommodates wide or narrow drive-thru configurations
Double-telescoping screw pads offer increased versatility
Padded overhead safety shutoff bar
Exclusive Bi-Metric™ arm design for more versatile arm positioning
Single-point safety release
Drop-end arms provide a lower pad height
Dual hydraulic direct-drive cylinders
Oversized 53″ & 59″ tall carriages for superior strength and durability
Electric / hydraulic HVLP power system
Self-lubricating dura-glide UHMW polyethylene bearing system
Safety locks in each column spaced every 3″
Automatic arm restraints withstand over 2000-pounds of side force
3/8″(10mm) High-strength multi-strand galvanized steel equalizing cable
Oversized cable sheave diameter reduces cable fatigue
Four triple-telescoping arms
ALI certified

WSA-100

Easy to install
Adapts to any two-post lift and four-post lift
Electrical outlets equipped with 20 amp industrial GFI protection
Electrical outlets located above the air service to prevent moisture damage and tangling
Air service through 2 outlets: one lubricated for tire inflation and one for pneumatic tools
Air service filter element and lubricator filler port are easily accessible
Nickel-plated ball valve shutoff
Powder-coated finish for durability and long life
Four 110V GFI outlets
Oiler
Air supply
Pressure gauge
Storage hooks for hose and tools
Regulator / filter
Air inlet

Frame Cradle Pads

Set of 4
60mm pin

Medium Adapter (60mm Pin)

Set of 4
2.5”

Tall Adapter (60mm Pin)

Set of 4
5”

WARRANTY: 5-2-1

5 Years Structure
2 Years Hydraulics
1 Year Parts & Labor
